We are the leading manufacturer exporter and supplier of all types ofchemical earthing electrodes

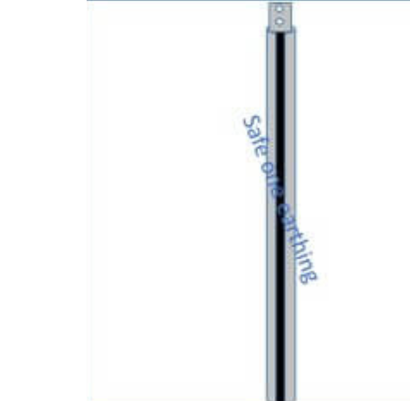

GI Strip in pipe Earthing Electrode
- Gi strip in pipe earthing electrodes are galvanised with zinc coating which preventcorrosion.
- This electrodes have GI strip inside pipe.
- Strip runs continuously around the pipe for fast discharge of fault current.
- Filled with conductive compound between pipe and strips to withstand heavy faultcurrent.
- Can be customized as per requirement.
- Manufactured with high grade and superior quality of material
Specification of GI Strip in Pipe Earthing Electrode
| Model | Pipe Dia(mm) | Length(M) | Terminal (Size) | Inner Strip(MM) |
| SOGIPS48 | 48 | 1,2,3 | 40X6 | 25 x 3 |
| SOGIPS76 | 76 | 1,2,3 | 50X6 | 25 x 3 |
- Chemical Earthing are widely used in electrical Earthing application
- Has long life and low conductivity as compare to conventional Earthing.
- Maintenance free which doesn't required any water
- Low resistance ohmic value which is maintained for long duration without any changesfor years
Available in
GI Earthing Electrode : GI strip in pipe earthing electrode / Gi pipe in pipe earthing electrode
Features
- Maintenance free no need for pouring water.
- Less space required for installation.
- Less exposer to corrosion due to zinc coating.
- Having good conductivity.
- CPRI tested.
- Quick Installation.
- Can be customized as per requirement.
- Long Life up to 8 years.
Application.
- Residential and commercial building
- Electrical equipment’s and meter room.
- Diesel Generator Set for body and Neutral.
- Lightning Arrester.
- Electrical Substation.
Download chemical earthing electrode drawing
Strip in pipe electrode copper bonded 48mm Dia
Strip in pipe electrode GI 76mm DiaGi strip in pipe earthing electrode
