Copper Bonded EarthingElectrode Specification

We are the leading manufacturer exporter and supplier of all types ofchemical earthing electrodes

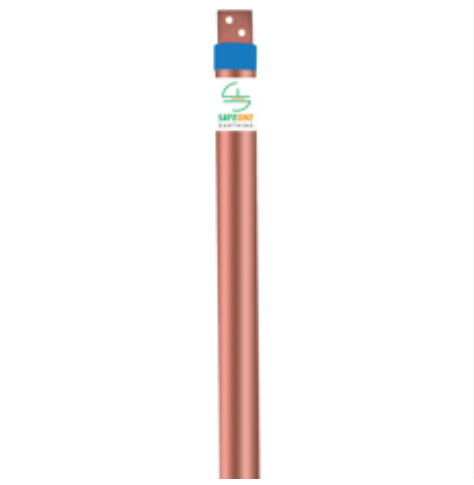

Copper Bonded Solid Earthing Electrode

Copper bonded solid electrode is most economical in electrode series

1. This electrodes are copper coated with 100/250 microns.
2. Copper Coating increases the conductivity and corrosion resistivity of electrodes
3. Easy to handle and and quick installation.
4. Can be customized as per requirement.
5. Manufactured with high grade and superior quality of material.
6. Chemial earthing are widely used in Electrical Earthing Application.
7. Has long life and low conductivity as compare to conventional Earthing.
8. Maintenance free which doesn't required any water.
9. Low resistance ohmic value which is maintained for long duration withoutany changes for years.

 Feature

1. Maintenance free no need for pouring water.
2. Less space required for installation.
3. Less exposer to corrosion due to Copper coating.
4. Having good conductivity.
5. Easy to Handle due to light weight.
6. CPRI tested.
7. Quick Installation.
8. Can be customized as per requirement.
9. Long Life up to 8 years.
10. Application.
11. Residential and commercial building
12. Electrical equipment’s and meter room.
13. Diesel Generator Set for body and Neutral.
14. Lightning Arrester.
15. Electrical Substation.

Down load chemical earthing electrode detail drawing TDS

Copper bonded solid electrode 17.2mm Dia
