SPECIFICATION OF GI EARTHING ELECTODE

We are the leading manufacturer and supplier of all types of chemical earthing elecrodes

Chemical earthing are widely used in electrical earthing application this earthing electrode has long lifeand low conductivity as compare to conventional earthing. This earthing are maintenance free whichdoesn't required any watering they have low resistance ohmic value which is maintained for long durationnormally without any changes for years.

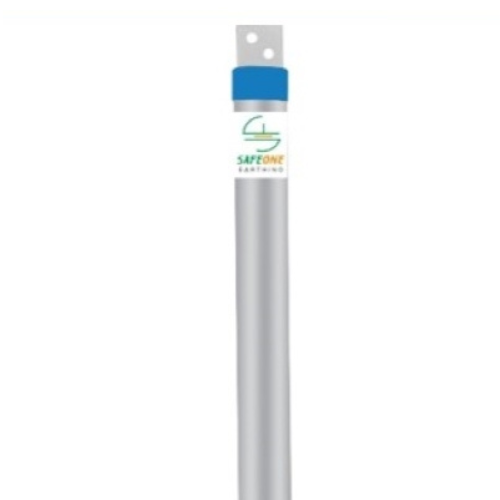

GI Earthing Electrode:-

Gi earthing electrodes are galvanised earthing electrode which has zinc coatingthat helps prevent corrosion this electrodes are most economical

our electrodes are manufactured with high grade and superior quality of material. this electrodes have GIstrip inside pipe which is connected to end terminal at top of electrode the strip helps in fast discharge offault current. GI chemical earthing electrodes are filled with conductive compund between pipe and stripsthis conductive compound is a good conductor of electricity which also helps to discharge the fault currenteasily to ground.

Using strip and compound reduces overall resistance of the electrode no of earthing electrodes can bereduced by using chemical earthing as the resistance value of chemical earthing is always lesser thanconventional earthing

Availaible in

1. GI Earthing Electrode
2. GI strip in pipe earthing electrode / Gi pipe in pipe earthing electrode

Feutures.

1. Maintenance free no need for pouring water
2. Less space required for installtion.
3. Less exposer to corrosion due to zinc coating.
4. Having good conductivity.
5. CPRI tested.
6. Quick Installation.
7. Can be customized as per requirement
8. Long Life upto 8 years.

Application.

1. Residential and comercial building for electrical equipments and meter room.
2. Diesel Generator Set for body and Neutral.
3. Lightning Arrester.
4. Electrical Substation.
5. factories,warehouses

Down load chemical earthing electrode drawing

Strip in pipe electrode copper bonded 48mm Dia

Strip in pipe electrode GI 76mm Dia
